CLRACING F7 MPU6000 V2.2 FC

Leírás

FEATURES

• MCU: STM32F722RET6216MHz
• 6-Axis MPU6000 Separated Interrupts
• Build in Beta flight OSD
• Up to 8S(36V) direct battery power
• Build in Voltage monitoring resistor
• Build in 5V/3A BEC and 3.3V/250mA for system
• Led strip share 5V with 5V/3.0A BEC
• 5V OR VBAT, camera and VTX POWER VIA Pit Switch
• 6 Full UARTS: UART1, UART2, UART3, UART4, UART5, UART6
• Buildin Camera Control pin with necessary resistor and capacitor near camera connection
• Buzzerpads for external buzzer
• Build in 32MB Blackbox flash chip
• M4 Can be selected either led strip signal or M4 signal for RPM filtering

INCLUDES

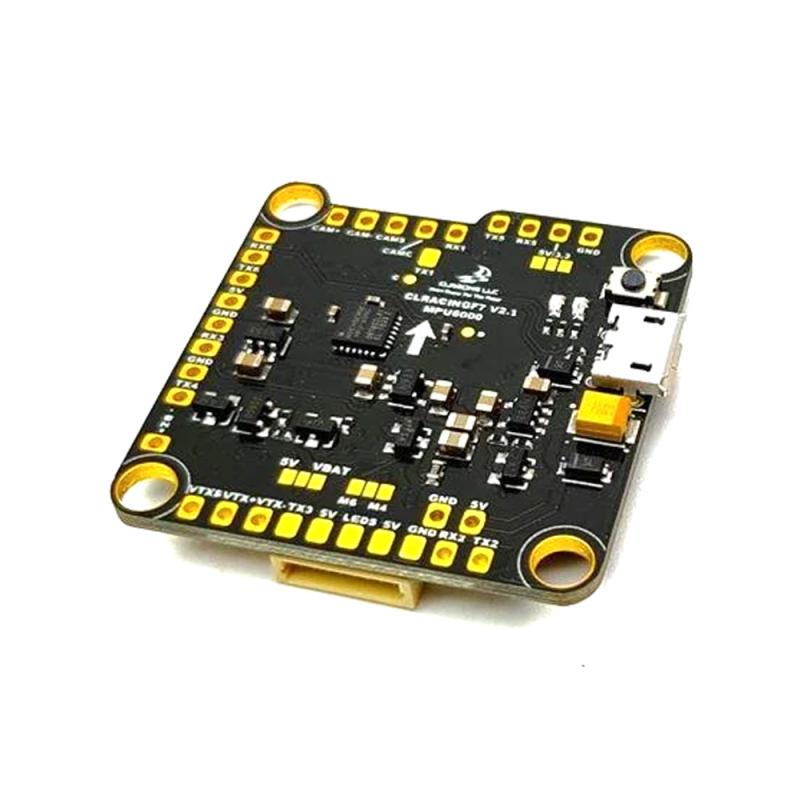

• 1x CLRacing F7 V2 MPU6000 30×30 Flight Controller
• 6x Soft Mount Gummies
• 1x 4in1 Cable
• 2x Spare Plug
